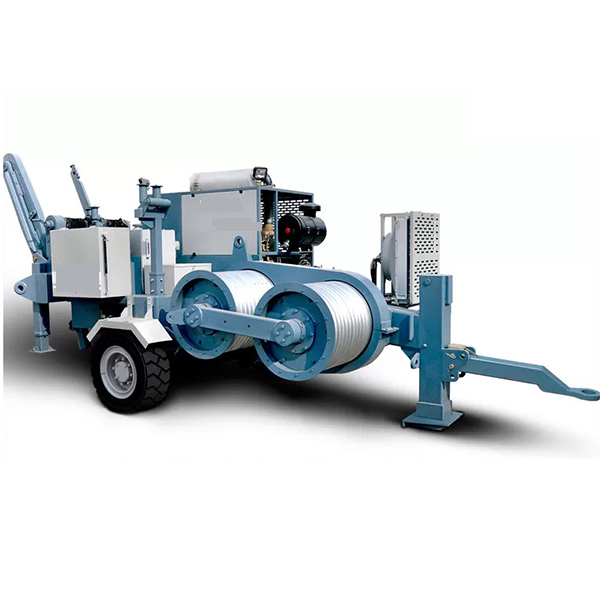

280kN 28tons Overhead Transmission Line Stringing Equipment Hydraulic Puller TY280
The pole top pin is made from hot new rolled steel. The steel will heat to red and punched to the designed shape. The finish of the pole top pin is hot dip galvanized which is reasonably smooth and free of burrs or other sharp projections.
One is the slide-out variety and the other incorporates a removable lid. As for the latter one, the tray can be pulled out and lowered to 10 degree working angle or even further 45 degree working angle to provide ease of access for maintenance or installation work.
Test Results Storage, Transfer and Post Processing with Test Results Management software
The Fibershot AWI File Management system allows technicians to organize test results into multiple files and transfer stored results via USB to a PC for analyzing, generating reports, and printing.The supplied powerful PC Analysis & Reporting Tool (Test Results Management software) allows users to apply industry standards-based rules to test results and create comprehensive certification reports. Users can generate network Pass/Fail results demonstrating compliance with industry standards and illustrate headroom. The Software is a Windows® compatible software. buy optical power meter at a reasonable cost.
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores
The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.
Guy thimble is also called cable thimble which is used on pole band to work as an interface fitting to connect the guy grip or guy wire. The guy thimble is widely used on the electric power line or dead-end pole line. The cable thimble usually connects with the preformed tension clamp to support and protect the ADSS/OPGW cable.
1. 2-Bundle Overhead Line Stringing Equipment
2. Main pump and motor: German Rexroth
3. Hydraulic Puller Tensioner
4. Max pull: 2x70kN
5. Diesel: Cummins 129kw(173hp)
6. Speed Reducer: German Rexroth
7. Bull-wheel diameter: 1700mm
8. Max rope diameter: 24mm
9. Max reel size: 1700mm
Pole top bracket is made to permit mounting on wood poles by two 16mm diameter bolts vertically spaced 203mm center to center. One of the bracket mounting holes is slotted to permit slight variations in mounting bolt spacing. The insulator mounting surface is at a height approximately 125mm above the top bracket mounting hole.
According to the different shapes, there is another type called Y clevis. It’s because the structure is like letter “Y”. On the one hand of the ball clevis is a ball head. On the other hand, there is a steel pin or hex bolt going through the two holes of the ball clevis. So that, there is space for the U clevis to connect the ball clevis.
The cutting tools feature an advancing speed setting automatically switching from a fast advancing speed of cable cutting blades to a slower cutting speed – tools are provided with a maximum pressure valve (MPC1 manometer is available upon request to check the proper setting of the valve).
Aniscom Technologies Limited was established in 2015. The company is one of the leading suppliers of telecommunication network equipment.
