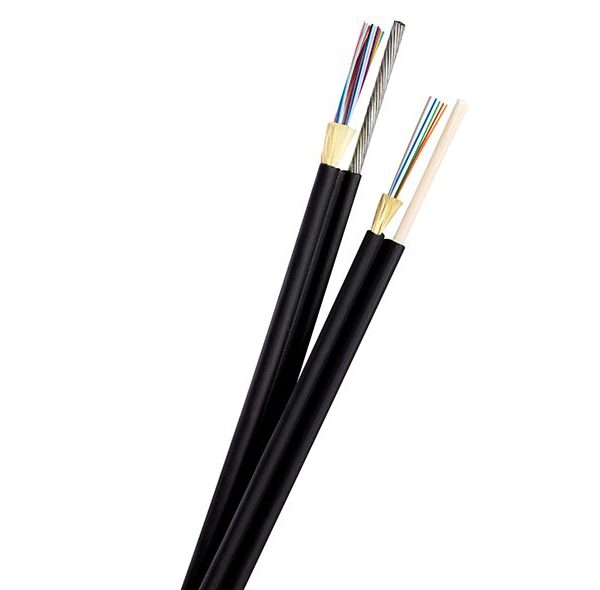

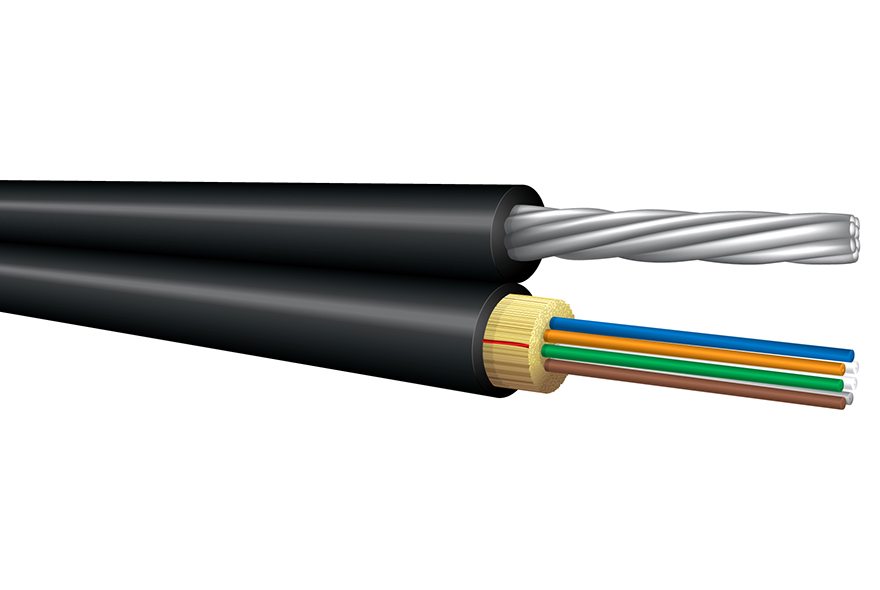

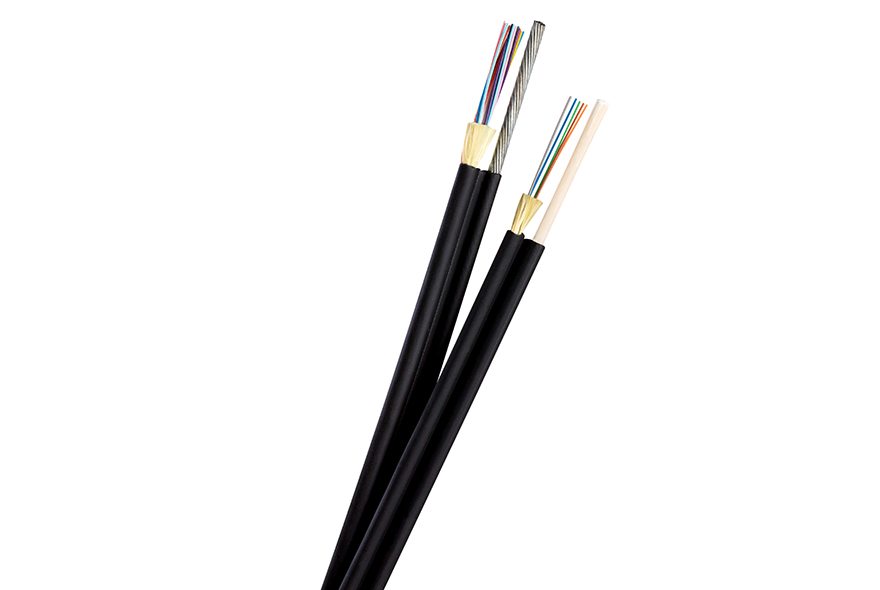

Outdoor aerial installations along utility poles for cable television, telecom or other outside plant campus backbone applications without the need for cable lashing.
The pole top pin is made from hot new rolled steel. The steel will heat to red and punched to the designed shape. The finish of the pole top pin is hot dip galvanized which is reasonably smooth and free of burrs or other sharp projections.
The cutting tools feature an advancing speed setting automatically switching from a fast advancing speed of cable cutting blades to a slower cutting speed – tools are provided with a maximum pressure valve (MPC1 manometer is available upon request to check the proper setting of the valve).
Features:
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores

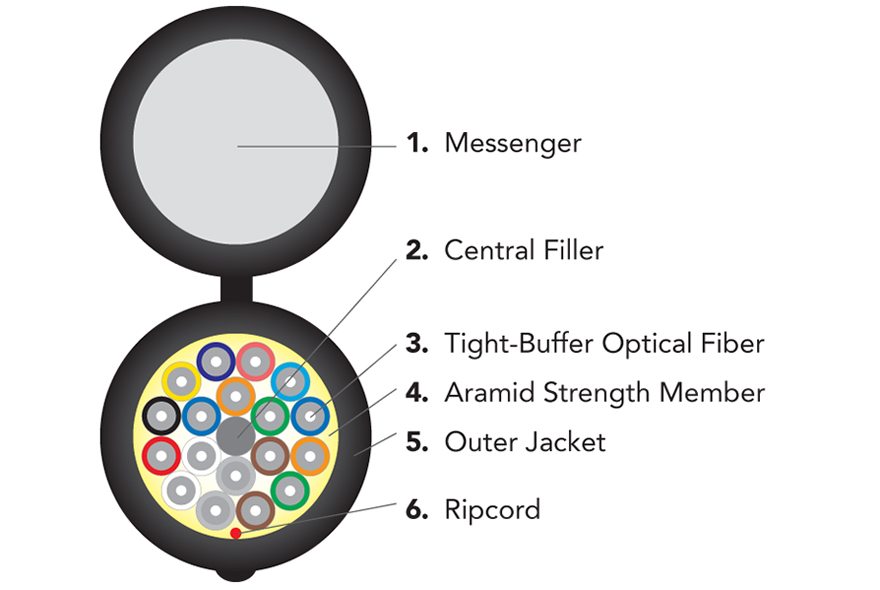

The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.
According to the number of bolts, there are 3 types:1 bolt guy clamp, 2 bolt guy clamp, and 3 bolt guy clamp. 3 bolt clamp is most used due to the excellent performance.
In another installation way, the guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.
Designed to fit the metric range of cables, and with a longer lattice length, these grips are ideal for pulling light to medium loads.
This grip has a flexible eye construction.
Type: SEM60.
Diameter A Nominal: 65mm.
Range: 60 – 70mm.
Lattice Weave: Double.
B: 1500mm.
C: 1750mm.
D (rope diameter): 8mm.
E: 102mm.
Approx. Break load: 7790Kg.
1. 2-Bundle Overhead Line Stringing Equipment
2. Main pump and motor: German Rexroth
3. Hydraulic Puller Tensioner
4. Max pull: 2x70kN
5. Diesel: Cummins 129kw(173hp)
6. Speed Reducer: German Rexroth
7. Bull-wheel diameter: 1700mm
8. Max rope diameter: 24mm
9. Max reel size: 1700mm
Aniscom Technologies Limited was established in 2015. The company is one of the leading suppliers of telecommunication network equipment.
