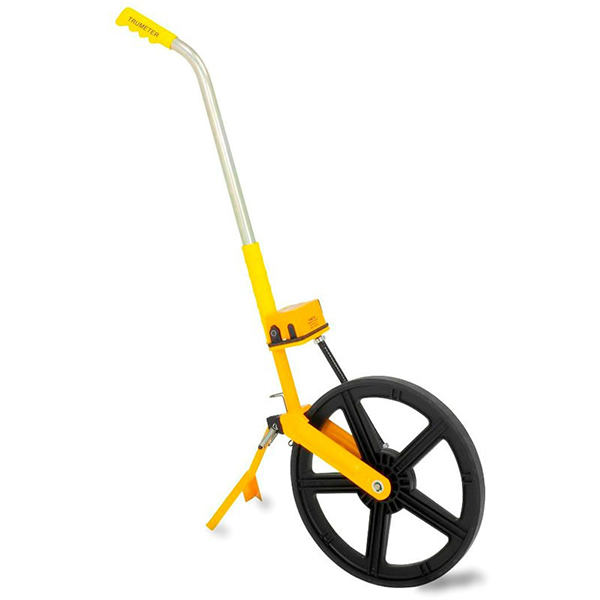

Professional and robust road measuring wheel with built in stand and brake. The wheel is available in metric and is ideal for any distance measuring application.
Guy thimble is also called cable thimble which is used on pole band to work as an interface fitting to connect the guy grip or guy wire. The guy thimble is widely used on the electric power line or dead-end pole line. The cable thimble usually connects with the preformed tension clamp to support and protect the ADSS/OPGW cable.
Features:
Guy wire anchor rod feature:
1. Breaking Load test: 62kn for 1 min
2. Hot-dip galvanized strictly according to ASTM-123
3. Uniform and reasonable packing
4. Size Accuracy 0.1mm.
5. Direct From Factory, Save 30%–50% Cost
The guy wire anchor rod with square nut is manufactured in hot-dip galvanized steel. The raw material steel is selected according to AISI-SAE 1018 or 1020. The carbon is not lower than 0.13% according to ASTM A36M. Zinc coating of 80 um, according to ASTM A-153. The head of the guy wire anchor rod will be forged in one single piece with a single eye, twin-eye, or trip eye as attached drawings.The other side rod is with 8cm to 10cm thread length according to UNC. The UNC required 10thread per inch.
The heavy-duty square nut which assembled on the guy wire anchor rod is of galvanized steel with a minimum coating of 53 um, according to class C of ASTM A153. The square nut thread is made before galvanization.
One is the slide-out variety and the other incorporates a removable lid. As for the latter one, the tray can be pulled out and lowered to 10 degree working angle or even further 45 degree working angle to provide ease of access for maintenance or installation work.
A pole band is designed to suitable for use on poles of pole top diameter 150mm to 280mm. We have supplied a diameter of 155mm, 185mm, 230mm, and so on.
The pole band has a stay tension strength not exceeding 29kn. While the result will be different if a gain grid or some other device is used to transfer the shear load from the pole bolt.
According to the different shapes, there is another type called Y clevis. It’s because the structure is like letter “Y”. On the one hand of the ball clevis is a ball head. On the other hand, there is a steel pin or hex bolt going through the two holes of the ball clevis. So that, there is space for the U clevis to connect the ball clevis.
The ladder is easily foldable for convenient transportation and storage, and its easy click-lock system allows for both versatility and security. Suitable for Trade and DIY use.
• Maximum safe working load of 150kg
• Fitted with stabiliser bars
• Simple ‘click-lock’ hinge system
• Folded height 0.9m
• Stepladder height 1.65m (SWH 2.72m)
• Extension ladder height 3.38m (SWH 4.03m)
SWH is the recommended safe working height.
Aniscom Technologies Limited was established in 2015. The company is one of the leading suppliers of telecommunication network equipment.
