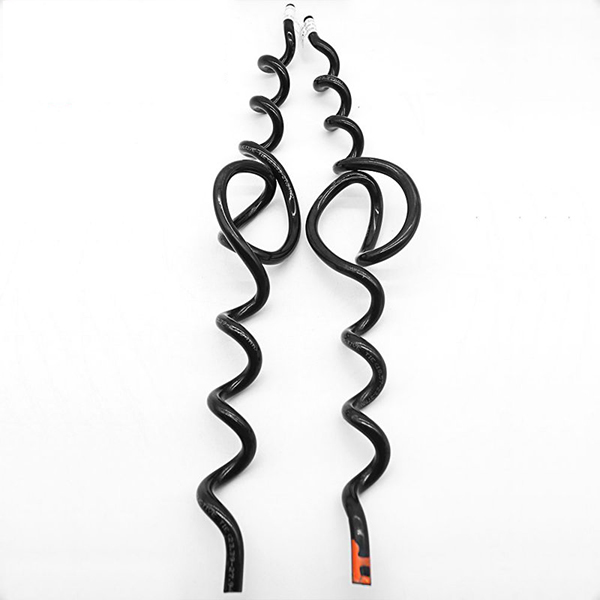

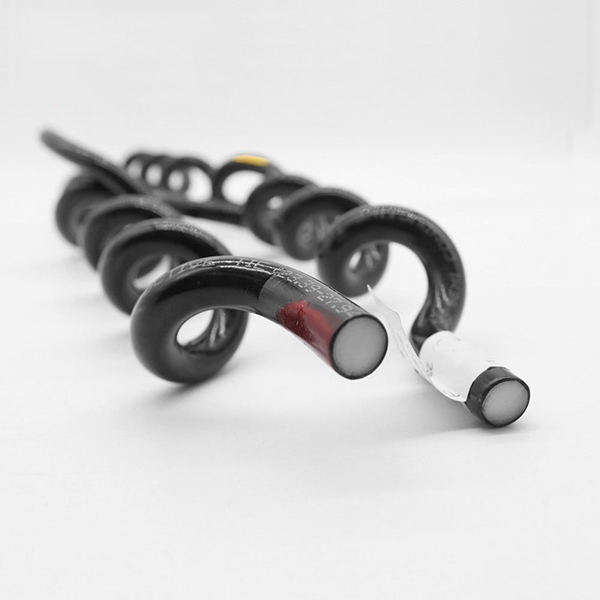

Semi-Conductive Single Top Tie

Double line ties /top ties are intended for securing bare conductors into the top groove of insulators. On vertically-mounted insulators at double cross arms or brackets, the double line ties /top ties can normally accommodate line angels of up to 20̊ with no more than a 10̊ angle at each insulator.

Metal Single line/top ties are intended for securing bare conductors into the top groove of insulators. On vertically-mounted insulators, single line ties/ top ties can normally accommodate line angels of up to 10̊ depending on insulator orientation.

Metal Single side ties are intended for securing bare conductors into the side groove of insulators. On horizontally-mounted insulators, single side ties can normally accommodate line angels of up to 10̊. On vertically-mounted insulators, line angles up to 40̊ can normally be achieved.

PVC plastic double angle side ties are intended for use with covered conductors and vertically-mounted tie top insulators on cross arms or pole-top-mounted insulators. When utilized within double cross arm construction as illustrated. Line angles of up to 22°to 60°can be comfortably accommodated.

PVC plastic double line /top ties are intended for use with covered conductors and vertically-mounted tie top insulators on cross arms or pole-top-mounted insulators. When utilized within double cross arm construction as illustrated. Line angles of up to 0°to 30°can be comfortably accommodated.

PVC plastic single side ties are intended for use with covered conductors and side-mounted tie top insulators on arm less construction. Line angles of up to 15°can be accommodated when used with any plastic covered conductors.

Metal Double side ties are intended for securing bare conductors into the side groove of insulators. On vertically-mounted insulators at double cross arms or brackets, the double side ties can normally accommodate line angles of between 0̊ and 80̊, with no more than a 40̊ angle at each insulator.
