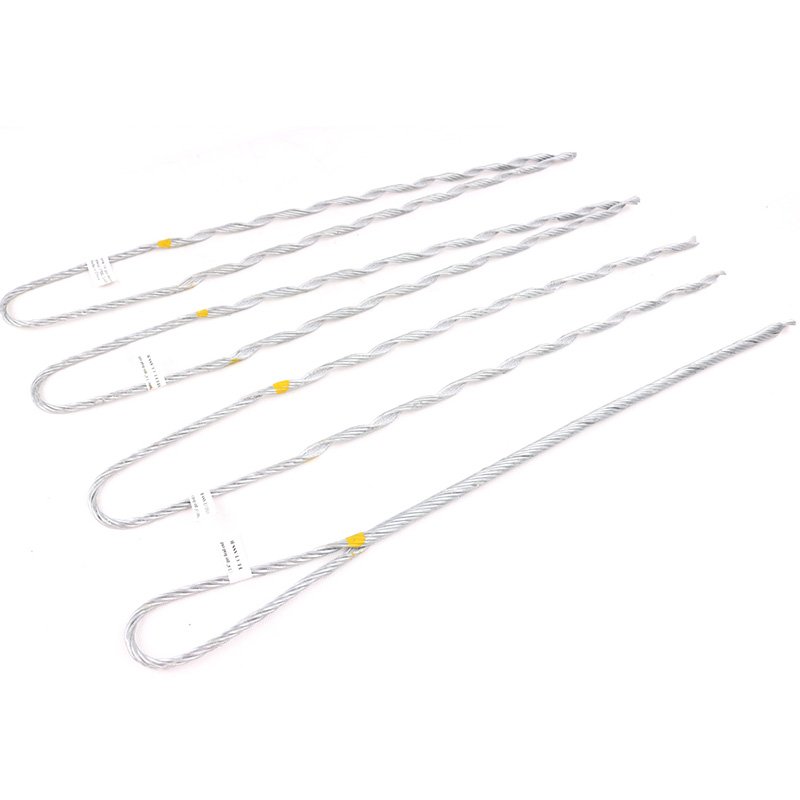

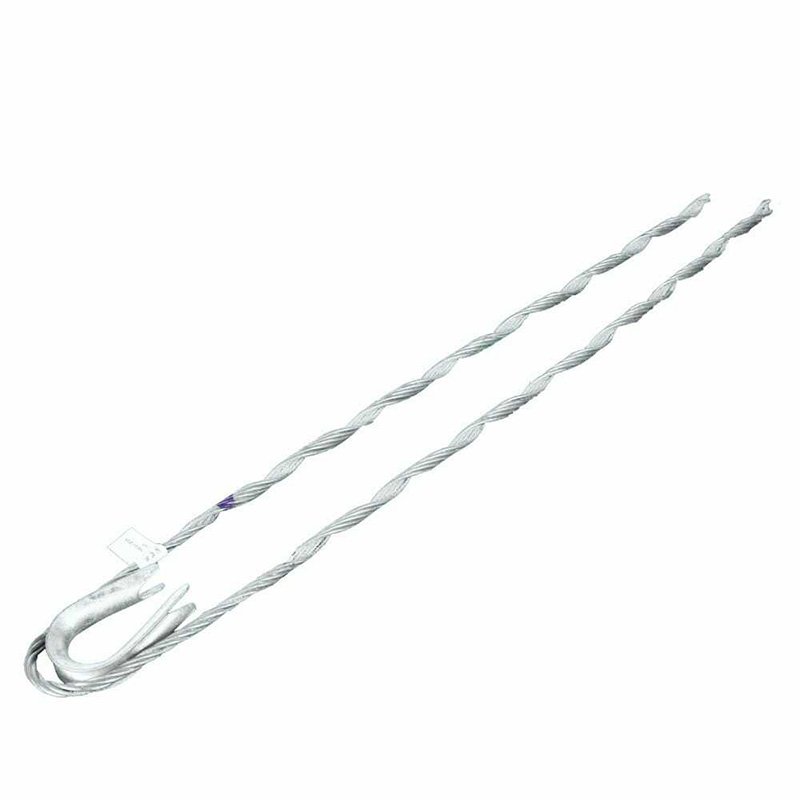

Tension sets
1. Short span length 200m
2. Terminal pole tower, tension pole/tower,
3. Pole/tower with corner angles greater than 15°and RTS no more than 20kN
4. Suitable for city ADSS cable installation.
Description
1. Stress is distributed equally, without stress focus.
2. Easy installation and no tools required
3. Right-hand lay strand.
4. The grip strength is not less than 90% of rated pulling tension strength, completely satisfying the needs of setting up the cable.
5. All wires are chamfered at the ends
6. Inner lining of the harness: The inner surfaces of the preformed is coated with abrasive resin & oxide grit, which does not spoil the aluminum clad to increase friction between the wire and the harness
7. Number of rods of the harness (n): 4 <-n <-8
